Brand Name : Wenyang machinery
Model Number : WY958
Certification : ISO 9001-2008
Place of Origin : China
MOQ : 1 unit
Price : 30000 USD - 50000 USD
Delivery Time : 20 days after receiving deposit
Packaging Details : 1 unit /40HQ
Rated capacity : 5TON
Bucket capacity : 3m3
If OEM : Yes
Max dumping height : 3300mm
Engine : Weichai or Cummins engine
Warranty : 1 year
Tranportation : 1 x 40HQ
5ton 3cbm bucket capacity wheel loader with Weichai engine or cummins engine
| Model | WY958 |
| Operating weight | 17100 kg |
| Rated load | 5000 kg |
| Bucket capacity | 3 m³ |
| Engine model | WEICHAI WD10G220E23 |
| SHANGCHAI SC11CB220G2B1 | |
| CUMMINS 6CTA8.3-C215 | |
| Rated power | 162KW |
| Rated rotate speed | 2000r/min |
| Max. torque | ≥745.3N.m |
| Breakout force | 145KN |
| Driving speed | |
| Forward I | 0-11.5km/h |
| Forward II | 0-38km/h |
| Reverse I | 0-16km/h |
| Grade ability | 28° |
| Overall length | 7950mm |
| Overall width | 2870mm |
| Overall height | 3500mm |
| Bucket width | 3000mm |
| Wheel base | 3300mm |
| Track base | 2260mm |
| Min. ground clearance | 470mm |
| Max. dumping height | 3300mm |
| Max.dumping reach | 1400mm |
| Hydraulic Torque converter | Single stage 4elements |
| Transmission | Planet-type |
| Raise time | ≤6.8s |
| Total | ≤12.5s |
| Tire type | 23.5-25 20PR |
|
                                             |

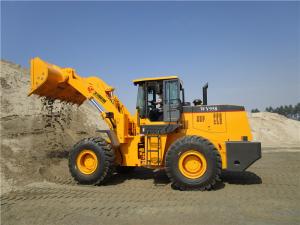

                        5ton 3cbm bucket capacity wheel loader with Weichai engine or cummins engine Images |
